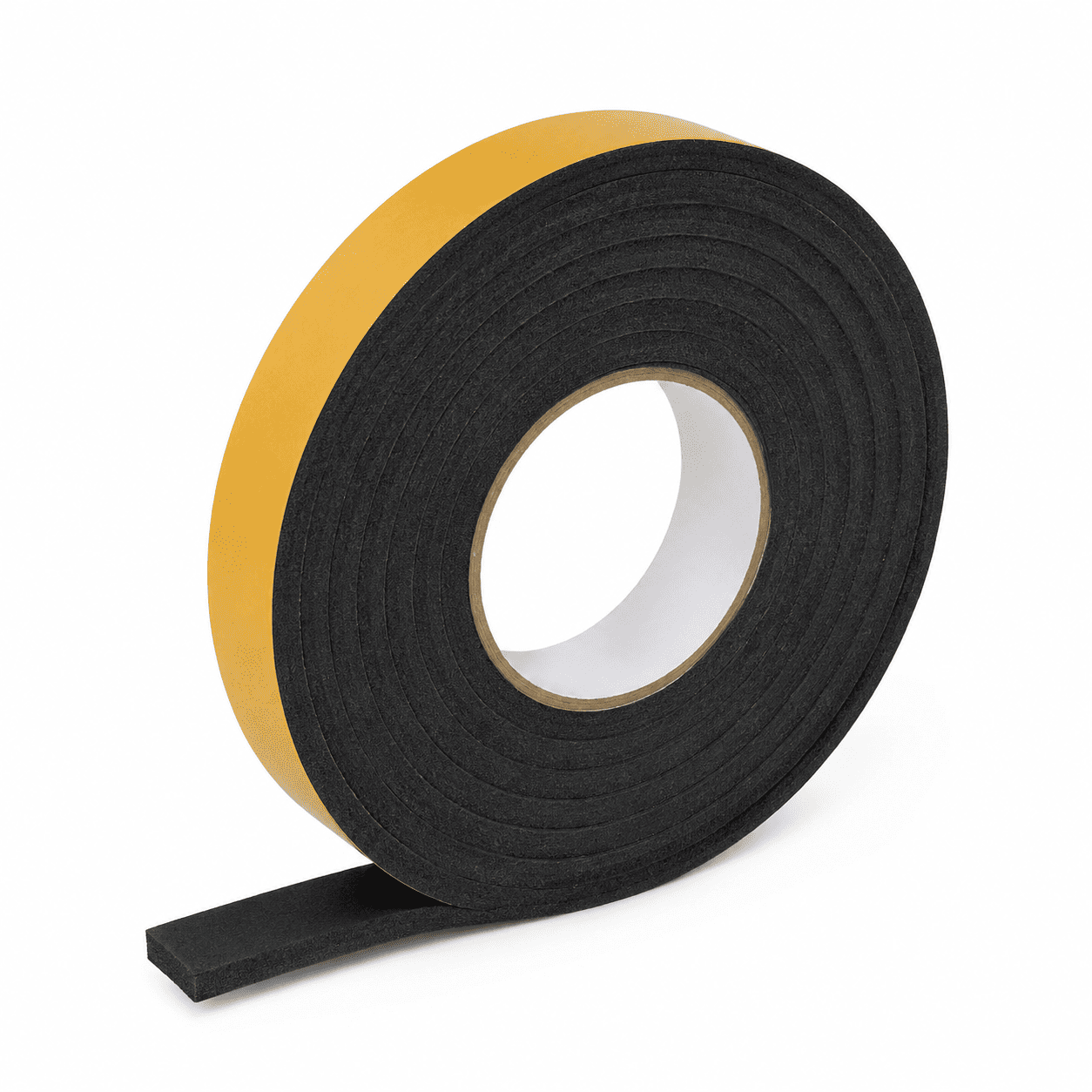

PVC Nitrile Closed Cell Foam Tape
Ambassador Industrials PVC/Nitrile closed cell foam tape is a high-performance sealing solution designed to maintain a reliable water seal even under minimum compression (as low as 25%). Engineered using a blend of Polyvinyl Chloride (PVC) and nitrile rubber, this foam tape offers excellent flexibility, durability, and long-term resilience across demanding industrial environments.
Its unique integral ‘skinned’ surface enhances abrasion resistance, making it ideal for applications where the tape comes into contact with sharp or rough surfaces such as metal edges, enclosures, and fabricated components.
The closed-cell structure ensures an airtight, dustproof, and waterproof seal, while its low compression set allows the material to recover its original shape even after prolonged compression. This makes Ambassador Industrials foam tape highly effective for long-term sealing applications in automotive, construction, marine, and electrical industries.
Product Description
Key Features
- Easy release liner for quick installation
- Easy handling and application
- Low sealing compression (effective at ≥25%)
- Excellent UV resistance
- Dimensionally stable under stress
- Resistant to weathering, chemicals, oils, and grease
- Low compression set for long-term performance
- High flexibility across temperature variations
Applications
- Glass and glazing systems
- Die-cut gaskets
- Construction and fabrication
- Weather stripping
- Electrical switchboards and enclosures
- Marine hatches and sealing systems
- Refrigeration units and HVAC systems
Technical Advantages
| TEST | UNIT OF MEASURE | STANDARD VALUE | VALUE | TEST METHOD |
| BURN RATE | MM/MIN | FMVSS302 | <100 | 65 |
| DENSITY | KG/M3 | 55 ±10 | 57 | GB / T6343-1995 |
| COMPRESSION SET | % | <30 | 28 | GB/T 6669-2001 |
| TENSILE STRENGTH | KPA | >200 | 242 | GB / T6344-1996 |
| USAGE TEMPERATURE | °C | NEG 35°C TO 110°C | ||
| HOLDING POWER | MM | SUS 25°C, 1KG, 1H | 1.3 | |
| INITIAL TACK | # | J.DOW WAY , 23°C | 21 | |
| ADHESIVE TO STEEL | G/25MM | SUS, 180°, 23°C | 1960 | |
| PEEL ADHESIVE | G/50MM | 23°C | 80 | |
| LOAD BEARING | MM | 80°C, 220G, 1H | 20 | |
| SHRINKAGE | TRANSVERSE % | 80°C, 1H | -2 | |
| LONGITUDINAL % | -2.5 | |||
Technical Advantages
Durability & Resistance
PVC/Nitrile foam tape offers excellent resistance to UV exposure, weathering, chemicals, oils, and grease—making it suitable for both indoor and outdoor environments.
Thermal & Acoustic Insulation
Its structure provides effective vibration damping, noise reduction, and thermal insulation, improving overall system performance.
Flexibility & Strength
With strong tensile properties and elongation capability, the tape adapts easily to curves and uneven surfaces without tearing.
Electrical Safety
Non-conductive in nature, it acts as an electrolysis barrier and is suitable for electrical enclosures and switchboards.
Frequently Asked Questions
Yes. It offers excellent UV and weather resistance and does not degrade quickly when exposed to sunlight, moisture, or harsh environmental conditions.
While EPDM is ideal for weather resistance, PVC/Nitrile provides superior resistance to oils and grease, making it more suitable for automotive and industrial applications.
